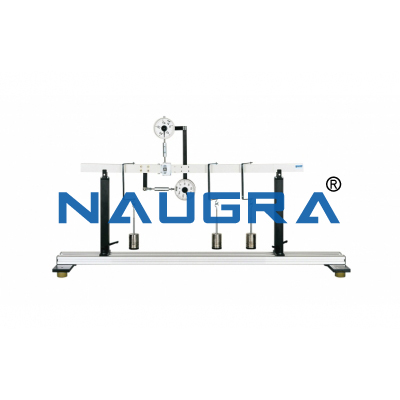

Shear Force and Bending Moment Diagrams
Description & Technical Specification
- Determination of shear force and bending moment on beam mounted on two supports
- Measurement of shear force and bending moment in beam by low-friction hinge with two degrees of freedom
- Position of hinge at 1/3 span
- Two bearing supports
- Loading of beam by one to three point loads
- Force gauges to indicate shear force and determine bending moment
- Bending moment determined by force measurement and lever arm
- Adjuster nuts for horizontal alignment of beam
- Steel rule to determine positions of point loads
- Storage system to house the components
