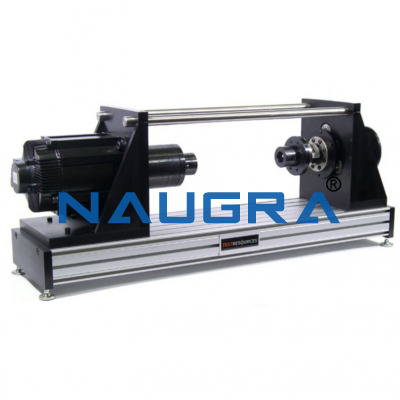

Torsion Tester

Torsion Tester

Add to Cart

Torsion Tester .

Torsion Tester, 30Nm

Specification of Torsion Tester, 30Nm

  • Experimental unit for testing metal torsion test bars under load until fracture
  • Test Torque Manually Applied Using Handwheel And Worm Gear
  • Definition Of Input Angle Via Hand Wheel
  • Measuring Device Slidable To Fit Various Specimen Lengths
  • Test Torque Measuring Using Strain Gauge Measuring Shaft And Measuring Amplifier
  • Strain Gauge Measuring Shaft With Compensation For Own Deformation
  • Measurement Of Angle Of Twist Using Incremental Encoder
  • Electronic Measuring Amplifier With Touch Panel To Display Torque And Angle Of Twist
  • Specimen holders: 2x 17mm hex socket

Technical Data

Worm Gear

  • Transmission ratio: 1:63

Short Specimens

  • Length: 75mm
  • Diameter: 6mm
  • 4x steel, 4x aluminium, 4x brass

Long Specimens

  • Length: 2x 175mm, 2x 350mm, 2x 700mm
  • Diameter: 6mm
  • Steel

Measuring Ranges

  • Torque: 0...30,0nm
  • Angle of twist: 0...+/-3200°, resolution: 0,1°
